The voice coil is an essential component of any subwoofer, and it plays a crucial role in converting electrical signals into mechanical motion, which in turn generates sound. Understanding the design, function, and types of subwoofer voice coils is vital for both subwoofer enthusiasts and professionals.

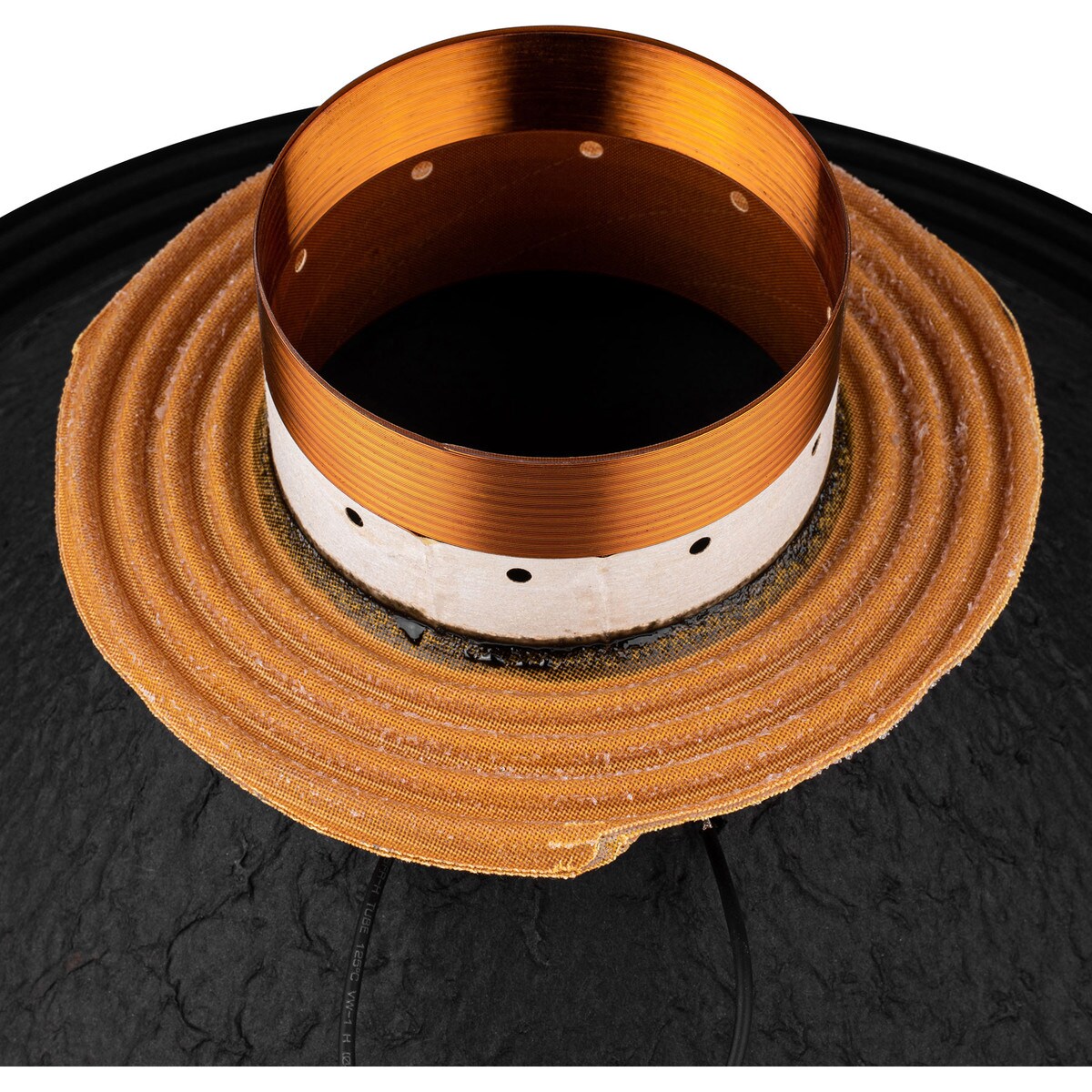

The voice coil is located in the gap between the subwoofer’s magnet and the cone. It consists of a cylindrical former wound with several turns of insulated copper wire. When an electrical signal is applied to the voice coil, it creates a magnetic field that interacts with the magnetic field of the magnet. This interaction generates a force on the voice coil, which causes it to move back and forth. The movement of the voice coil is then transferred to the cone, which vibrates and produces sound.
Having established the fundamental principles of a subwoofer voice coil, let’s delve into the specific details of its design and function in the next section.
Subwoofer Voice Coil
The performance of a subwoofer voice coil largely depends on its design and construction. Here are four important points to consider:
- Winding material: Typically made of copper, the purity and thickness of the winding wire affect the voice coil’s resistance and power handling.
- Former material: The former supports the winding wire and can be made of materials like Kapton, Nomex, or fiberglass, each with its own thermal and mechanical properties.
- Number of turns: The number of turns in the winding wire determines the voice coil’s inductance and impedance.
- Gap height: The gap between the voice coil and the magnet affects the voice coil’s sensitivity and linearity.
Optimizing these design elements is crucial for achieving a subwoofer voice coil with high efficiency, low distortion, and long-lasting performance.
Winding material: Typically made of copper, the purity and thickness of the winding wire affect the voice coil’s resistance and power handling.
The winding material of a subwoofer voice coil is typically copper, chosen for its excellent electrical conductivity and thermal properties. However, the purity and thickness of the copper wire used can significantly impact the voice coil’s performance.
- Purity: The purity of the copper wire affects the voice coil’s resistance. Higher purity copper has lower resistance, which allows for more efficient current flow and improved power handling. Oxygen-free copper (OFC) is a common choice for high-performance voice coils due to its exceptional purity.
- Thickness: The thickness of the copper wire affects the voice coil’s power handling capacity. Thicker wire can carry more current without overheating, resulting in increased power handling. However, thicker wire also increases the voice coil’s mass, which can affect its sensitivity and response time.
The optimal combination of copper purity and thickness depends on the specific requirements of the subwoofer design. By carefully selecting the winding material, manufacturers can achieve a balance between efficiency, power handling, and other performance parameters.
Former material: The former supports the winding wire and can be made of materials like Kapton, Nomex, or fiberglass, each with its own thermal and mechanical properties.
The former of a subwoofer voice coil is the cylindrical structure that supports and insulates the winding wire. It plays a crucial role in maintaining the voice coil’s integrity and performance under demanding operating conditions.
- Kapton: Kapton is a polyimide film known for its high thermal stability and electrical insulation properties. It can withstand temperatures up to 400°C (752°F) and has excellent resistance to solvents and chemicals. Kapton formers are often used in high-power subwoofers where heat dissipation is a concern.
- Nomex: Nomex is a meta-aramid paper with excellent mechanical strength and thermal resistance. It is less thermally stable than Kapton but has higher tensile strength and puncture resistance. Nomex formers are often used in subwoofers that require a balance of durability and performance.
- Fiberglass: Fiberglass is a composite material made of glass fibers embedded in a resin matrix. It offers high strength and stiffness, as well as good thermal and electrical insulation properties. Fiberglass formers are commonly used in subwoofers where low cost and durability are primary considerations.
The choice of former material depends on the specific requirements of the subwoofer design. Factors such as power handling, operating temperature, and cost must be taken into account to select the optimal former material.
Number of turns: The number of turns in the winding wire不足 the voice coils inductance and impedance.
The number of turns in the winding wire of a subwoofer voice is a crucial factor that influences two important electrical properties: inductance and impedance.
Inductance: Inductance measures the opposition of a voice to changes in current flow. A greater number of turns in the winding wire increases the inductance of the voice coils. Higher inductance can be beneficial in subwoofer designs where control over cone movement is desirable, such as in sealed enclosures.
Impedance: Impedance is the total opposition to current flow in a voice coils, considering both resistance and inductance. The number of turns in the winding wire has a direct impact on the voice coils impedance. More turns result in higher impedance, which can affect the overall performance of the subwoofer system and its interaction with the amplifier.
The appropriate number of turns in a subwoofer voice coils winding wire is determined through careful design considerations. It involves balancing the desired inductance and impedance values with other factors such as power handling, efficiency, and frequency response. By оптимиzing the number of turns, engineers can achieve a voice coils that meets the specific requirements of different subwoofer applications.
Gap height: The gap between the voice coil and the magnet gap affects the voice coil’s stiffness and linearity.
The gap height in a subwoofer voice coil is the distance between the voice coil and the magnet gap. It plays a crucial role in determining the voice coil’s stiffness and linearity, two important factors that affect the overall performance of the subwoofer.
Stiffness: The stiffness of a voice coil refers to its resistance to movement. A voice coil with a smaller gap height will be stiffer, meaning it requires more force to move. Higher stiffness can improve the subwoofer’s control over cone movement, reducing distortion and improving accuracy.
Linearity: Linearity refers to the voice coil’s ability to move smoothly and evenly within the magnet gap. A voice coil with a larger gap height will have better linearity, as it has more room to move without encountering non-linearities in the magnetic field. Good linearity is important for minimizing distortion and ensuring accurate sound reproduction.
The optimal gap height for a subwoofer voice coil is a balance between stiffness and linearity. A smaller gap height provides better control and reduced distortion, but it can also limit the voice coil’s excursion and power handling. A larger gap height allows for greater excursion and power handling, but it may compromise stiffness and linearity. Designers carefully consider these factors when choosing the gap height to achieve the desired performance characteristics for a particular subwoofer application.
Tips
Here are some practical tips for optimizing the performance and longevity of subwoofer voice coils:
Use a high-quality voice coil: The quality of the voice coil is paramount for achieving optimal subwoofer performance. Look for voice coils made with pure copper winding wire and a robust former material that can withstand high temperatures and mechanical stress.
Ensure proper alignment: The voice coil must be precisely aligned within the magnet gap to minimize distortion and maximize efficiency. Improper alignment can lead to rubbing or binding, which can damage the voice coil and degrade sound quality.
Avoid over-excursion: Excessive cone excursion can put undue stress on the voice coil and lead to premature failure. Ensure that the subwoofer is not overdriven and that the amplifier is properly matched to the subwoofer’s power handling capabilities.
Keep the voice coil cool: Heat is a major enemy of voice coils. Provide adequate ventilation around the subwoofer to dissipate heat and prevent the voice coil from overheating. In high-power applications, consider using a subwoofer with a vented voice coil design to improve cooling.
Closing Paragraph for Tips:
By following these tips, you can help extend the lifespan of your subwoofer voice coil and enjoy optimal sound performance for years to come.
The subwoofer voice coil is a crucial component that plays a vital role in converting electrical signals into mechanical motion, ultimately generating sound. Understanding the design, function, and maintenance of subwoofer voice coils is essential for both subwoofer enthusiasts and professionals seeking to achieve the best possible performance from their audio systems.
Conclusion
In summary, the subwoofer voice is a key component that converts amplifier output into sound. Its performance is largely determined by its materials, design, and gap height. By carefully selecting and configuring these parameters, voice coil performance can be maximized for a given subwoofer application.
Whether you are an audio enthusiast or a professional sound system installer, understanding the fundamentals of subwoofer voice coils will empower you to make informed decisions about your subwoofer system and enjoy the best possible bass performance.
